Product Details
Place of Origin: NINGBO CHINA
Brand Name: LINGKAI
Certification: ISO
Model Number: SHZHD10
Payment & Shipping Terms
Minimum Order Quantity: 10 SETS
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 3-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets/month
Name: |
Quadrant Block |
Rated Load (KN): |
10 |
Bend Radius (mm): |
R570 |
Dimension: |
760 X 120 X 480 Mm |
Name: |
Quadrant Block |
Rated Load (KN): |
10 |
Bend Radius (mm): |
R570 |
Dimension: |
760 X 120 X 480 Mm |

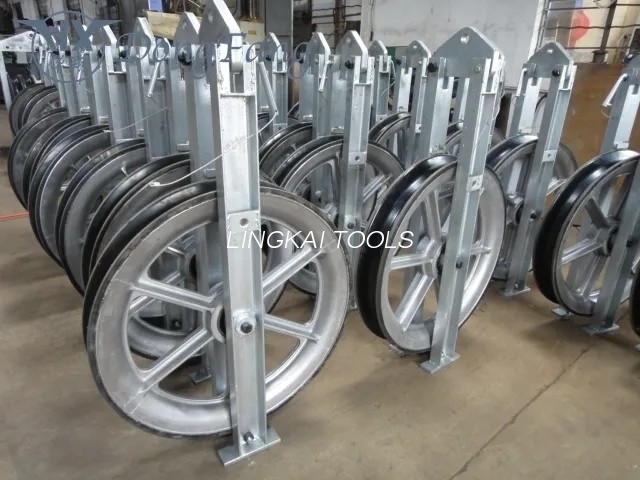

OPGW stringing rollers are used for stringing optic fiber cables on overhead transmission line.
We supply specially designed rollers for different requiremnt.
Quadrant Block for optic fiber cable SHZHD10
| Item No. | Bend Radius (mm) | Dimension (mm) | Rated load (KN) | Weight (kg) |
| 20141 | R570 | 760 x 120 x 480 | 10 | 23.5 |
Application: It is used to string fiber optic cables up to diameter Φ22mm.
All the sheaves are mounted on ball bearings. The frame is made in galvanized steel.
Features: With four wheels structure, large bend radius, light weight.
